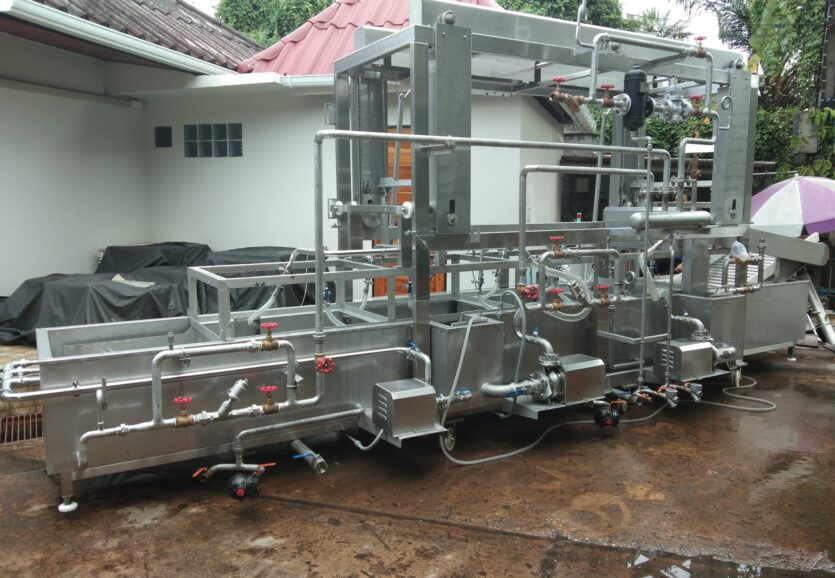

Forming belt (setting belt)
The material is stainless steel 304, with dimensions of 2140x8820x2370 mm.
The water tank is also made of stainless steel 304, folded to a size of 920x8370x600 mm.
The exterior of the water tank is covered with insulation for heat protection, along with a sheet of stainless steel 304. The conveyor structure is made of stainless steel 304.
The conveyor belt is divided into two sections, the first section is a sheet of stainless steel 304, folded to hold the chain, and the second section is a round coil to hold the chain.
The system uses a circulating water pump with a stainless steel 304 impeller and filter. The steam supply system is also made of stainless steel 304.
The lifting system can raise the machine up to 600 mm from its original height. This machine is used to shape raw materials into various shapes before boiling or frying.
The water tank is also made of stainless steel 304, folded to a size of 920x8370x600 mm.
The exterior of the water tank is covered with insulation for heat protection, along with a sheet of stainless steel 304. The conveyor structure is made of stainless steel 304.
The conveyor belt is divided into two sections, the first section is a sheet of stainless steel 304, folded to hold the chain, and the second section is a round coil to hold the chain.
The system uses a circulating water pump with a stainless steel 304 impeller and filter. The steam supply system is also made of stainless steel 304.
The lifting system can raise the machine up to 600 mm from its original height. This machine is used to shape raw materials into various shapes before boiling or frying.
